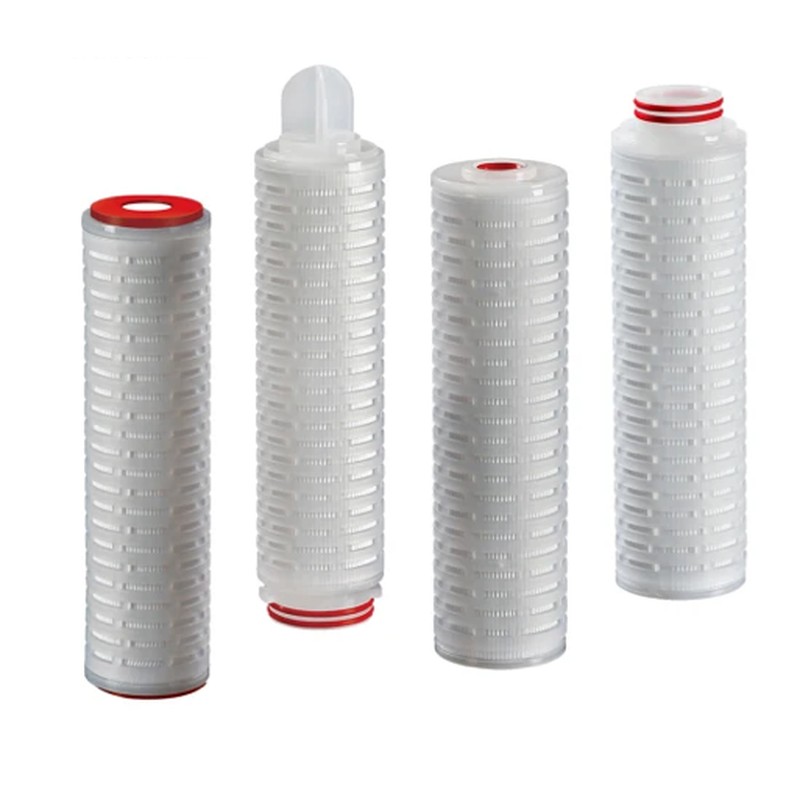

Absolute Pleated Cartridge – FIN 226

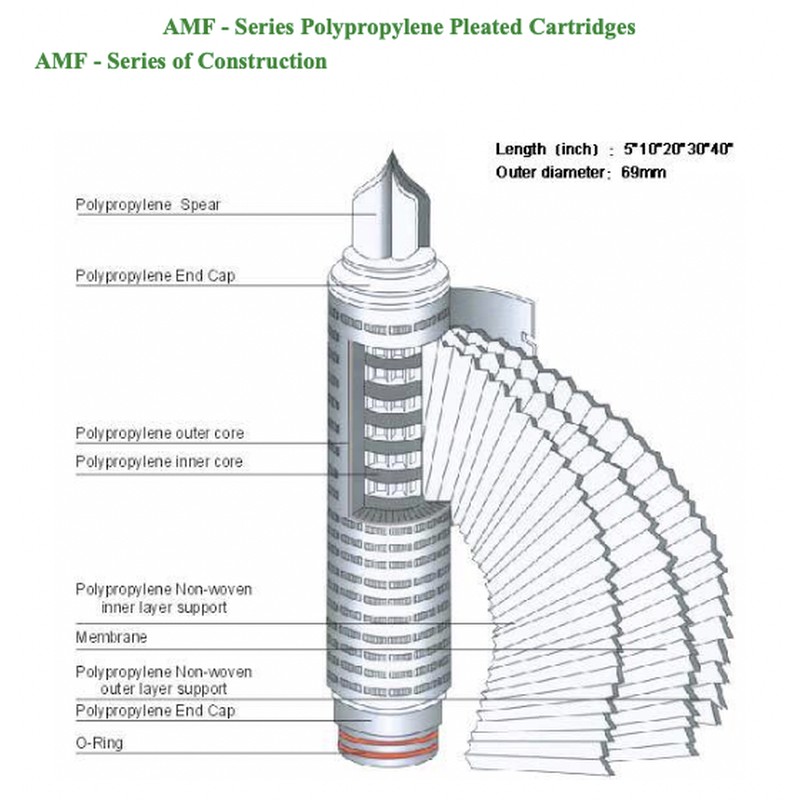

Absolute high-performance pleated water filter cartridges (AMF Series) for sub-micron filtration of process liquids where a naturally hydrophilic membrane is required. Constructed of Nylon 6 membrane fibre with a narrow pore-size distribution and high porosity; each cartridge passes strict integrity testing. Good chemical compatibility – compatible with most sanitary reagents including up to 50% H2O2 and up to 1.6% bleach (800 ppm NaOCl). Excellent hydrophilisation, no pre-wetting required. 0.60 m2 filtration area, low pressure drop and high flow rate. End caps and inner/outer core thermally bonded and binder-free. Specifications: retention ratings 0.22, 0.45, 1 and 5 micron; lengths 10in, 20in, 30in, 40in; effective filter area 0.60 m2; inner diameter 28 mm; outer diameter 69 mm; membrane media Nylon 6; inner & outer core high-strength polypropylene; gasket/cap material Buna-N, Silicone, Viton.

Applications:

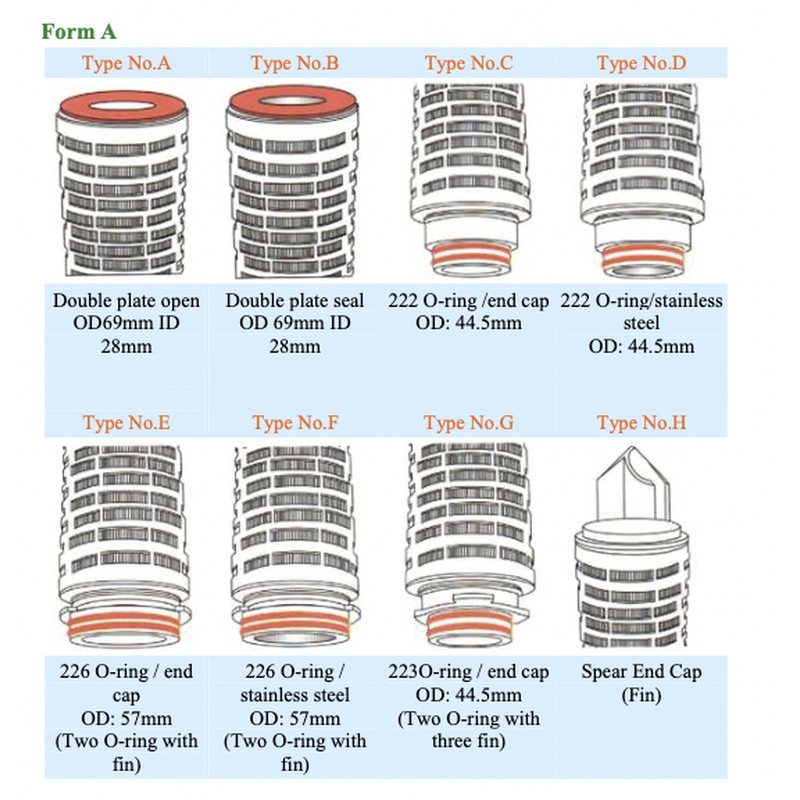

terminal fine filtration for DI water systems; base solutions, solvents and photoresists for LCD manufacturing; electronics-industry filtration; high-purity chemical liquid filtration. End-cap connection: 226 O-ring with fin / spear end (code F226).
